Smart Thermostat Premium
Solve your comfort, home health, and security needs, all in one beautiful design.
Overview

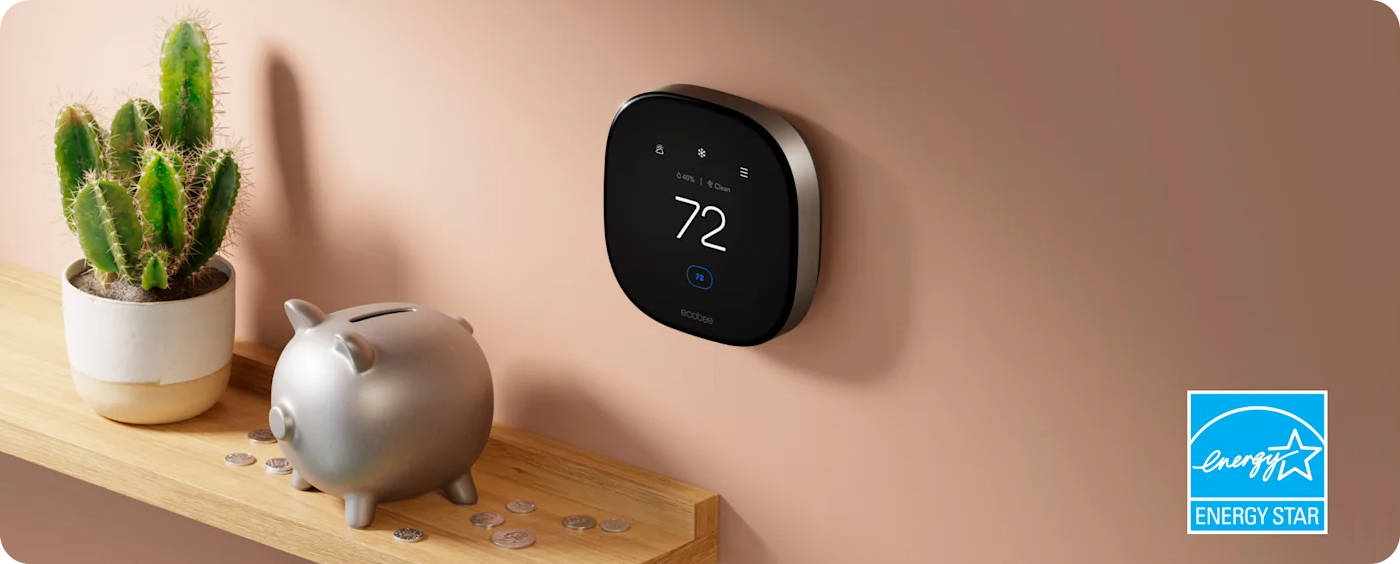

Saving energy is just the beginning.
Say hello to savings this summer: Smart Thermostat Premium saves you up to $284† per year on heating and cooling by changing your home's temperature based on your routine and who's home.
Saving energy is just the beginning.
Breathe better with air quality monitoring and alerts.
Breathe better with air quality monitoring and alerts.

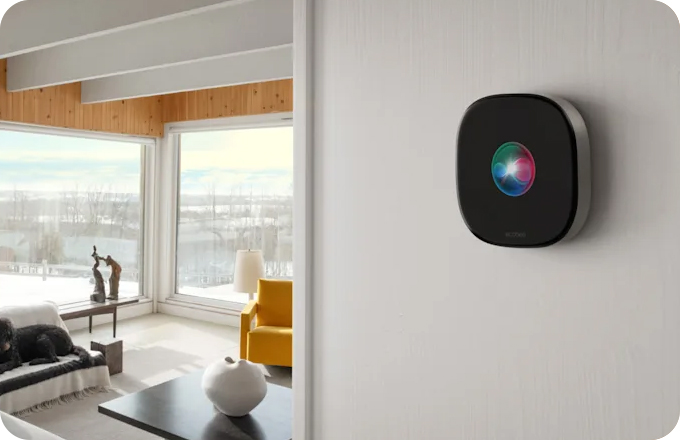

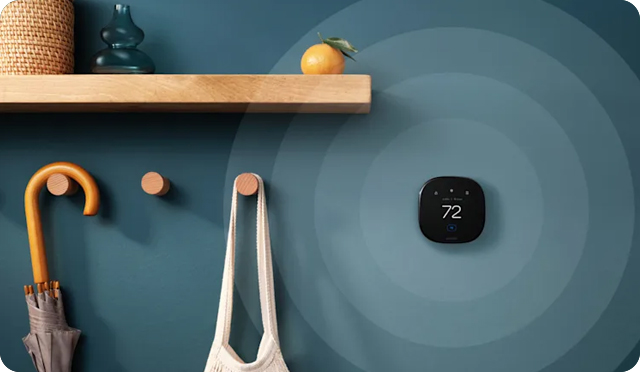

Control your home with your voice using Siri¹ or Alexa Built-in.
Control your home with your voice using Siri¹ or Alexa Built-in.

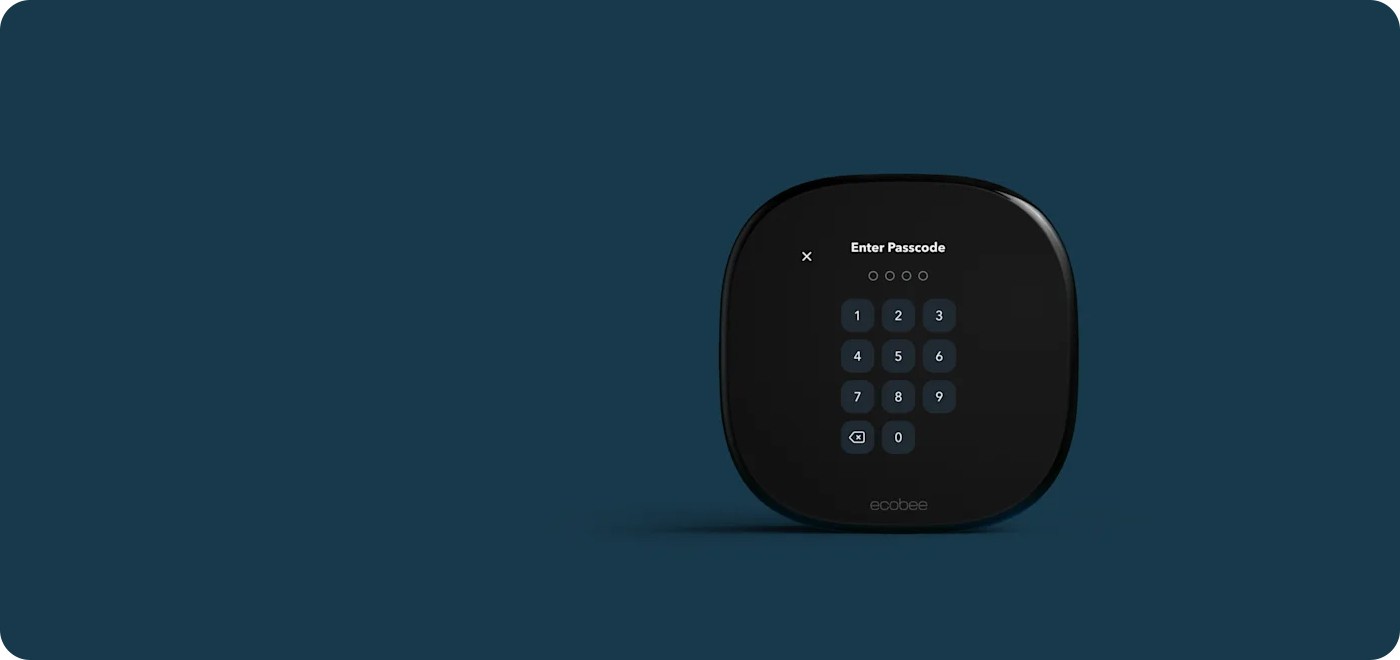

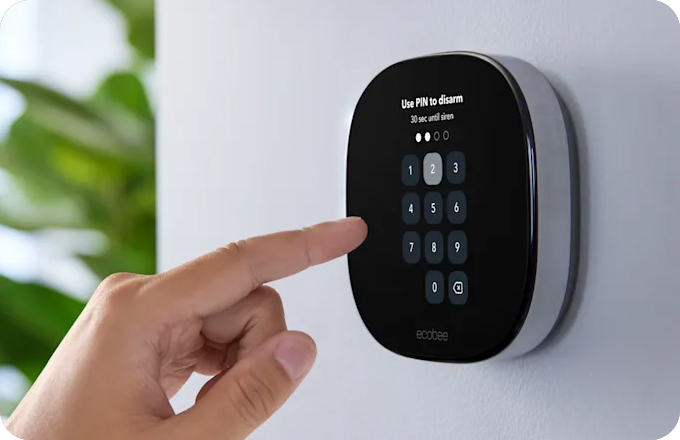

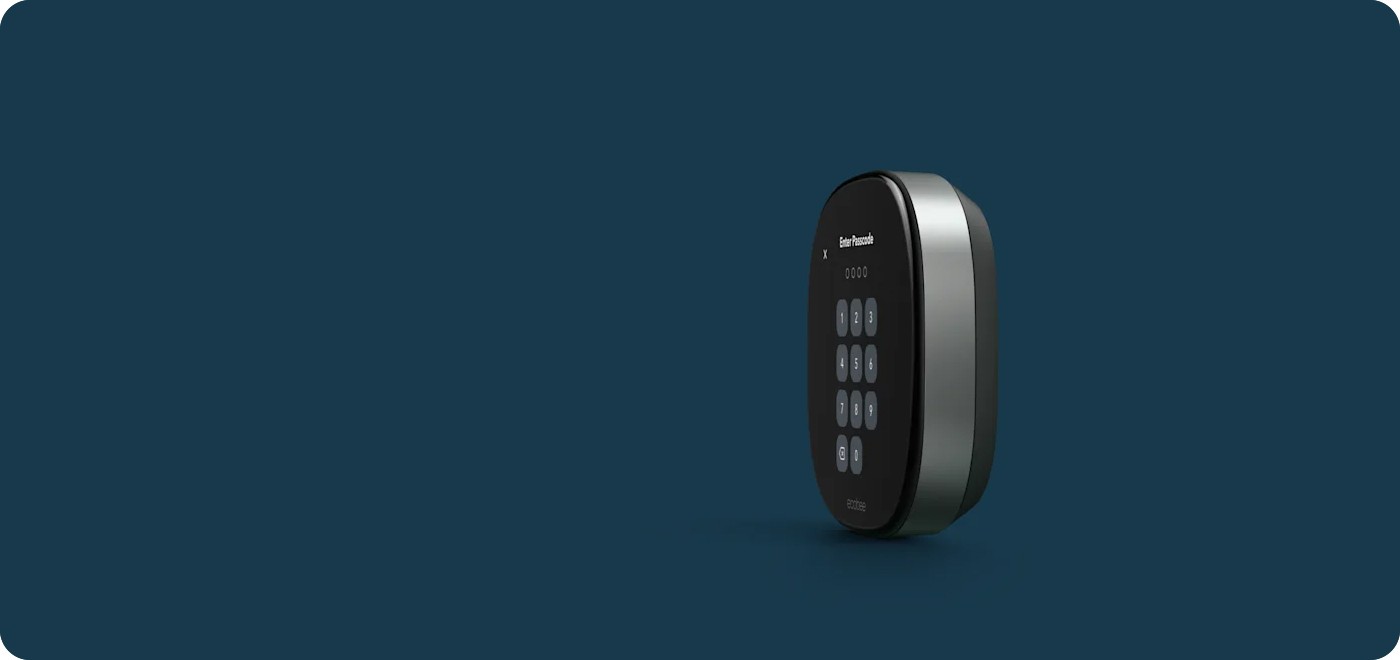

Protect your home with a smart thermostat that doubles as a base station and keypad for ecobee Smart Security.
Protect your home with a smart thermostat that doubles as a base station and keypad for ecobee Smart Security.

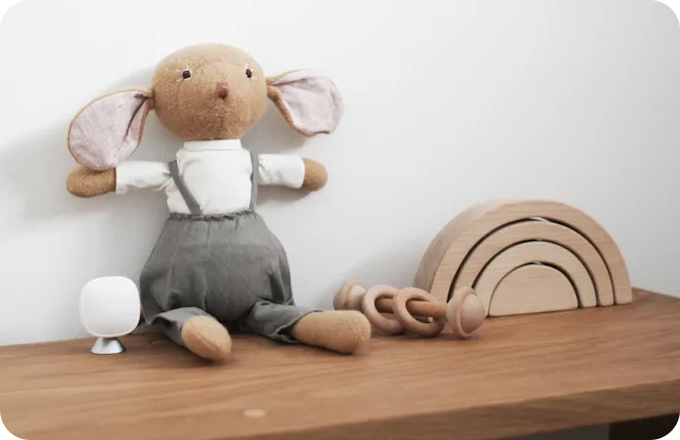

Manage hot and cold spots in the most important rooms with included SmartSensor.
Manage hot and cold spots in the most important rooms with included SmartSensor.

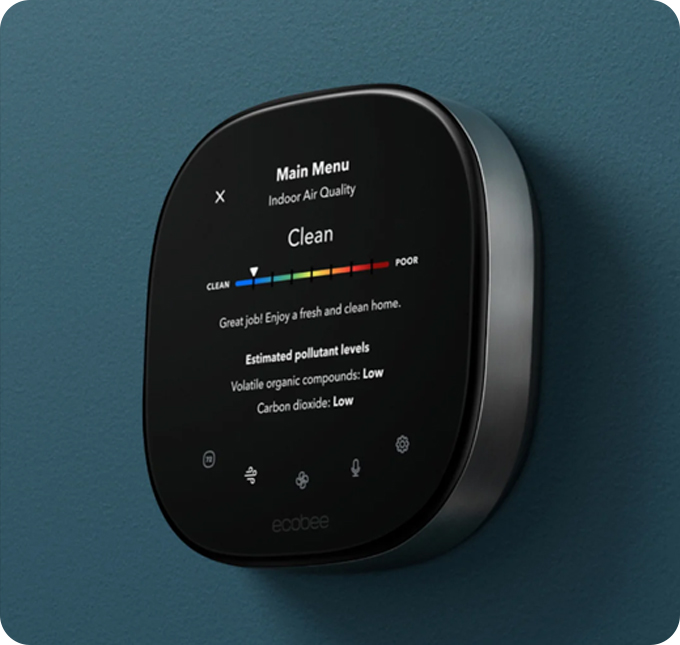

Transforming the thermostat for home health.
Transforming the thermostat for home health.

Unlock a healthier home with indoor air quality monitoring, including alerts and tips.

  • Built-in air quality monitor alerts you when air quality is poor and offer tips on how to improve it.

  • Air filter change reminders make cleaner air a breeze.

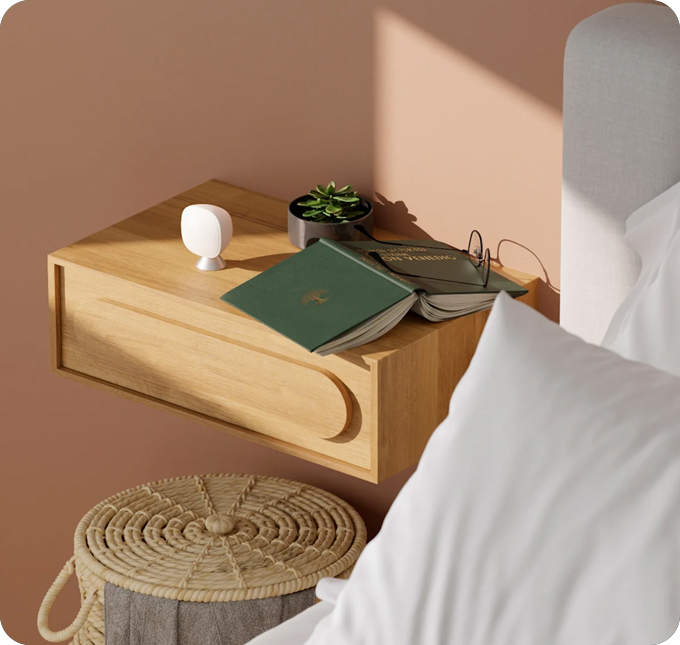

Eliminate hot and cold spots.
Eliminate hot and cold spots.

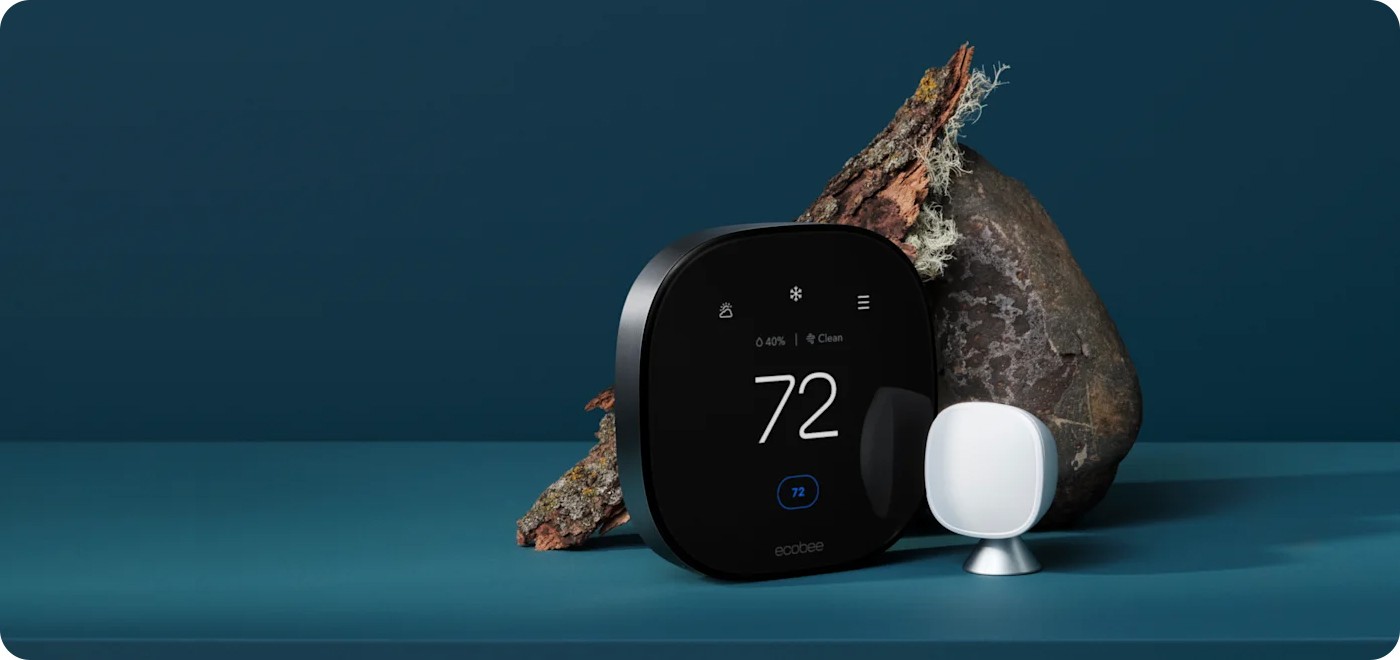

Our included SmartSensor detects which rooms are occupied and adjusts the temperature for perfect comfort. It can also tell when the home is empty, and can reduce heating or cooling to lower energy costs.

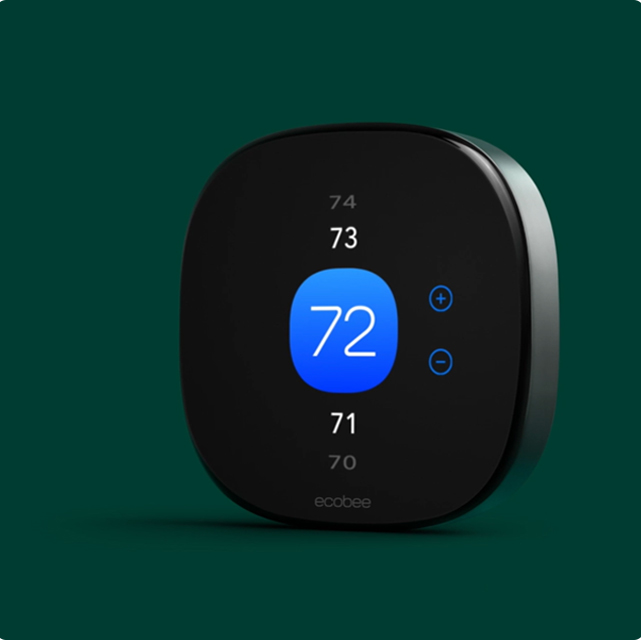

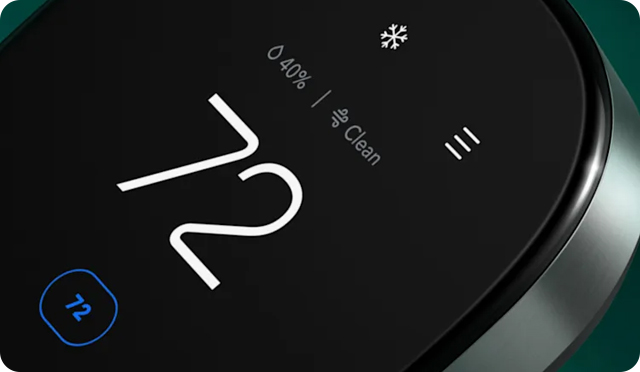

See for yourself what premium feels like.
See for yourself what premium feels like.
Completely redesigned inside and out with our biggest breakthroughs yet for a device you’ll be proud to display.
Works in harmony with leading smart home ecosystems including Apple HomeKit.
Alexa Built-in
Google Assistant
Apple HomeKit²
Samsung SmartThings
A speaker worth talking about.
Get ultimate convenience like two-way talk with a built-in smart speaker and your choice of Siri¹ or Alexa Built-In.

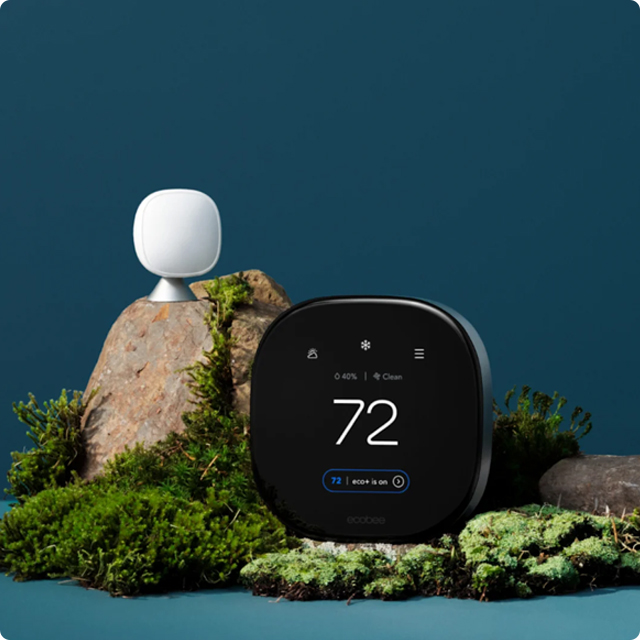

eco+ makes saving energy automatic.
eco+ makes saving energy automatic.

Unlock enhanced savings and comfort with eco+, next-level software for the world’s most advanced thermostats.

  • Automatically turns down your temperature when nobody is home.³

  • Learns your routine and recommends changes to your thermostat schedule for optimal energy savings.³

  • Automatically heats or cools your home when electricity is more affordable and cleaner.⁴

  • Reduces strain on the electricity grid and provides you with incentives from your energy provider.⁴

See what's happening at your front door, on your thermostat.
See what's happening at your front door, on your thermostat.
Never be surprised by who's at the door. Smart Thermostat Premium seamlessly connects with ecobee Smart Doorbell Camera to display a live stream of your front door.
Display4 in. full-color LCD touchscreen
540 x 540 pixel display
DimensionsThermostat
Height: 103.89 mm (4.09 in.)
Width: 103.89 mm (4.09 in.)
Depth: 25.9 mm (1.02 in.)		Trim plate
Height: 143.5 mm (5.65 in.)
Width: 159.9 mm (6.29 in.)
Depth: 7.71 mm (0.3 in.)
Power Extender Kit*
Length: 62 mm (2.4 in.)
Width: 62 mm (2.4 in.)
Depth: 23 mm (0.9 in.)
*Optional for installation
ColorsBlack front, die cast metal frame – zinc alloy
Thermostat sensorsTemperature
Humidity
Occupancy (Radar)
Proximity (Radar)
CompatibilityWorks with most 24VAC HVAC equipment, including conventional furnaces and air conditioners (2H/2C), heat pumps (2H/2C + 2 stage AUX heat), boilers, and PTACs or fan coil units with up to 3 fan speeds. One 1-wire accessory or one 2-wire accessory support for humidifiers, dehumidifiers, and ventilators (HRV/ERV).
HVAC accessory supportOne 1-wire acc. or one 2-wire accessory. Control an accessory HVAC device like a humidifier, dehumidifier, or ventilation device.
Wire TerminalsRc
G
Y1
Y2
OB
PEK+
C		Rh
W1
W2
ACC-
ACC+
Connectivity & securityDual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz, 802.11 a/n/ac @ 5GHz
Bluetooth 5.0
WPA, WPA2, WPA3 encryption methods
DHCP (dynamic) or static IP addressing
168-bit SSL encryption
915MHz radio
Works withApple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, and more.
Bandwidth15-20 MB/month (dependent on Alexa Voice Service usage)
Power consumptionUp to 3.5 VA
Powering methodsWired 24VAC through terminals C and Rc.
Power Extender Kit enables you to reliably power your thermostat without having to run a fifth wire.
SustainabilityRecycled packaging
Mercury-free
Arsenic-free
PVC-free
ROHS compliant
Temperature rangeDesired Temperature: 45° to 92°F (7° to 33°C)
Display: 40° to 100°F (5° to 37°C)
Sensitivity: +/− 1°F (+/− 0.5°C)
Operating: 14° to 122°F (-10° to 50°C)
Humidity rangeDisplay: 20% to 90%
Sensitivity: +/− 5%
Operating: 5% to 95% RH (non-condensing)
Storage−31° to 113°F (−35° to 45°C)
5% to 95% RH (non condensing)
Warranty3-year limited warranty
LanguagesEnglish
What's in the boxSmart Thermostat Premium
Thermostat mounting plate
SmartSensor with detachable stand and adhesive wall-mount
Quick-start guide
Wire labels
Screws and drywall anchors

Optional for installation:
Power Extender Kit (PEK)
Trim plate
